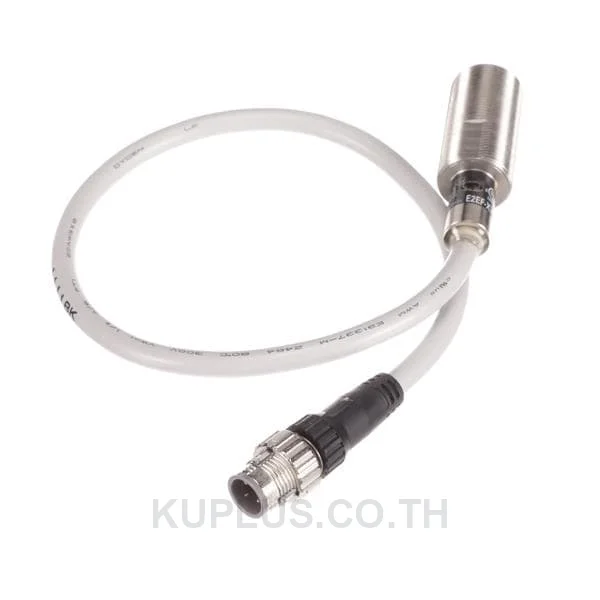

Proximity Sensor, Shielded, Cylinder type (with screw) M18, DC 2-wire models, Sensing distance 7 mm ±10%, NO, Prewired M12 smart click connector model

Name: Proximity Sensor, Shielded, Cylinder type (with screw) M18, DC 2-wire models, Sensing distance 7 mm ±10%, NO, Prewired M12 smart click connector model
Brand: Omron
SKU: E2EF-X7D1-M1TGJ 0.3M
Price: 5000.00 THB
Availability: OutOfStock

Part no.: E2EF-X7D1-M1TGJ 0.3M

฿5,000

Ask about stock

ยี่ห้อ : OMRON รุ่น E2EF-X7D1-M1TGJ 0.3M * พร็อกซิมิตี้เซนเซอร์ * ระยะตรวจจับ 7 มม. ขนาดเกลียว M18

Specifications

แบรนด์	OMRON
ประเภทสินค้า	พร็อกซิมิตี้เซนเซอร์
รหัสรุ่น	E2EF-X7D1-M1TGJ 0.3M
ซีรีส์	E2EF
ระยะตรวจจับ	7 มม.
แบบหัวตรวจจับ	Shielded (มีชีลด์)
ขนาดเกลียว	M18
จำนวนสาย	2 สาย
รายละเอียดตามข้อมูลเดิม	Shielded, Cylinder type (with screw) M18, DC 2-wire models, Sensing distance 7 mm ±10%, NO, Prewired M12 smart click connector model

Product details


Sensing head size	M18
Type	Cylinder type (with screw), Shielded
Power source	DC 2-wire models
Sensing distance	7 mm ±10%
Setting distance	0 to 4.9 mm
Differential distance	15% max. of sensing distance
Sensing object	Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object	Iron 30 x 30 x 1 mm
Response frequency	100 Hz (Average value)
Power supply voltage	10 to 30 VDC ripple (p-p) 10% included
Leakage current	0.8 mA max.
Control output (Switching capacity)	3 to 100 mA
Control output (Residual voltage)	3 V max. (Load current 100 mA max. with cable length of 2 m)
Indicator	Operation indicator (red), Operation setting indicator (green)
Operation mode	NO
Protective circuit	Output short-cut protection Surge suppressor
Ambient temperature (Operating)	-10 to 70 ℃
Ambient temperature (Storage)	-25 to 70 ℃
Ambient humidity (Operating)	35 to 95% RH
Ambient humidity (Storage)	35 to 95% RH
Temperature influence	±20% max. of sensing distance at 23 ℃ in the temperature range of −10 to 70 ℃
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength	Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance	Destruction: 1000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC: IP67
Connection method	Prewired M12 smart click connector model (0.3 m)
Weight	Package: Approx. 110 g
Material	Case: Stainless steel (SUS303) Sensing surface: Stainless steel (SUS303) Clamping nuts: Stainless steel (SUS303) Toothed washers: Iron zinc plating Cable: PVC (flame retardant)
Accessories	Instruction manual
