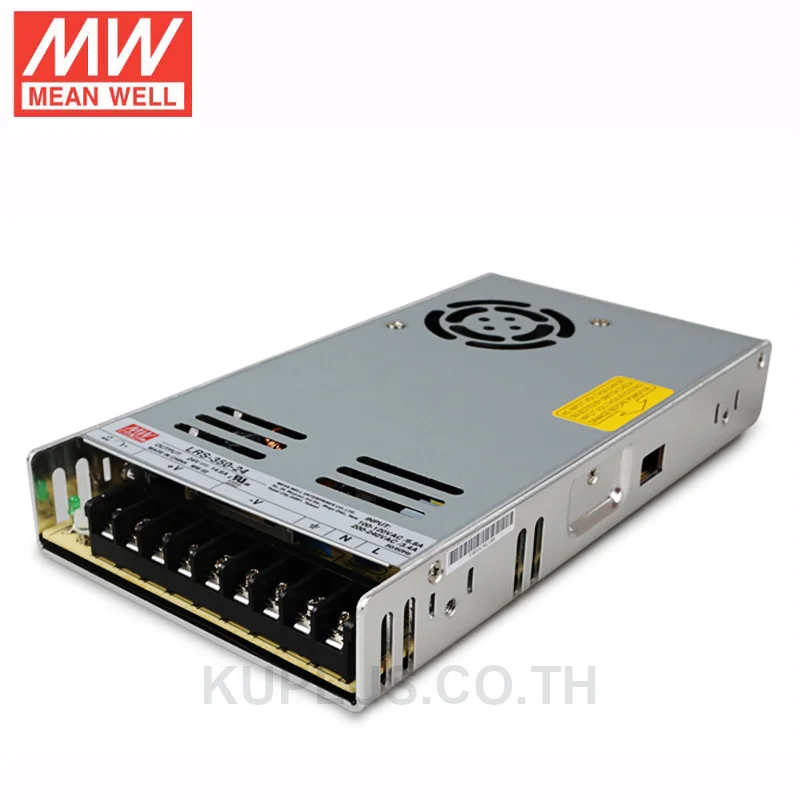

LRS-350-15 - MEANWELL - สวิทชิ่ง Power supply - Input Voltage 115/230V AC, 350W, 23.2A, 15V DC

รายละเอียดสินค้า

DC VOLTAGE: 15V
RATED CURRENT: 23.2A
RATED POWER: 348W
VOLTAGE ADJUST RANGE : 13.5 ~ 18V
VOLTAGE RANGE:  90 ~ 132VAC / 180 ~ 264VAC by switch  or  240 ~ 370VDC     (switch on 230VAC)
EFFICIENCY (Typ.): 86%

Features:

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Force air cooling by buit-in DC fan
• Buil-in cooling Fan ON-OFF control
• 1U Low profile
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption <0.75W
• High operating temperature up to 70°C
• Operating altitude up to 5000 meters (* see note)
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• LED indicator for power on
• 3 years warranty
