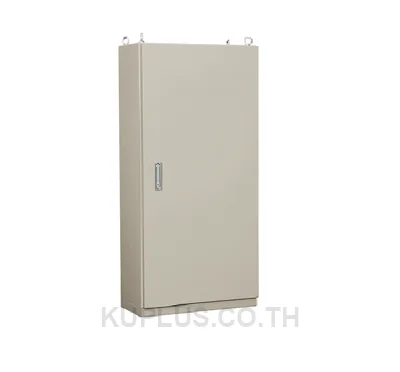

Steel Enclosure
รหัสสินค้า: E40-1620-2TH
ยอดเข้าชม - ครั้ง
฿49,800
สอบถามสต็อก
เพิ่มลงตะกร้าแล้ว
ไปที่ตะกร้า
รายละเอียดสินค้า
Depth 250 mm
| Model | Dimensions (mm) | Outside dimension (mm) | Height incl. eyebolt (mm) | (mm) | (mm) | Weight (kg) | Door type | |||||
| Light beige | Cream | | | | | Width | Height | |||||
| 700 | 1600 | 250 | 1650 | 1701 | 580 | 1480 | 224 | 95 | Single | |||
| 700 | 1900 | 250 | 1950 | 2001 | 580 | 1780 | 224 | 111 | Single | |||
| 800 | 1600 | 250 | 1650 | 1710 | 680 | 1480 | 224 | 106 | Single | |||
| 800 | 1900 | 250 | 1950 | 2010 | 680 | 1780 | 224 | 123 | Single | |||
| 800 | 2100 | 250 | 2150 | 2210 | 680 | 1980 | 215 | 135 | Single | |||
| 800 | 2300 | 250 | 2350 | 2410 | 680 | 2180 | 215 | 146 | Single | |||
| 1000 | 1600 | 250 | 1650 | 1710 | 880 | 1480 | 224 | 136 | Double | |||
| 1000 | 1900 | 250 | 1950 | 2010 | 880 | 1780 | 224 | 156 | Double | |||
| 1000 | 2100 | 250 | 2150 | 2210 | 880 | 1980 | 215 | 171 | Double | |||
| 1000 | 2300 | 250 | 2350 | 2410 | 880 | 2180 | 215 | 185 | Double | |||
| 1200 | 1600 | 250 | 1650 | 1710 | 1080 | 1480 | 224 | 155 | Double | |||
| 1200 | 1900 | 250 | 1950 | 2010 | 1080 | 1780 | 224 | 179 | Double | |||
| 1200 | 2100 | 250 | 2150 | 2210 | 1080 | 1980 | 215 | 197 | Double | |||
| 1200 | 2300 | 250 | 2350 | 2410 | 1080 | 2180 | 215 | 213 | Double | |||
| 1400 | 1900 | 250 | 1950 | 2010 | 1280 | 1780 | 224 | 204 | Double | |||
| 1400 | 2100 | 250 | 2150 | 2210 | 1280 | 1980 | 215 | 230 | Double | |||
| 1600 | 1900 | 250 | 1950 | 2010 | 1480 | 1780 | 212 | 236 | Double | |||
Depth 350 mm
| Model | Dimensions (mm) | Outside dimension (mm) | Height incl. eyebolt (mm) | (mm) | (mm) | Weight (kg) | Door type | ||||
| Light beige | Cream | | | | | Width | Height | ||||
| 500 | 700 | 350 | 750 | 801 | 420 | 620 | 330 | 44 | Single | ||
| 600 | 800 | 350 | 850 | 901 | 520 | 720 | 330 | 55 | Single | ||
| 700 | 900 | 350 | 950 | 1001 | 620 | 820 | 330 | 65 | Single | ||
| 700 | 1000 | 350 | 1050 | 1101 | 620 | 920 | 324 | 73 | Single | ||
| 700 | 1200 | 350 | 1250 | 1301 | 620 | 1120 | 324 | 82 | Single | ||
| 700 | 1400 | 350 | 1450 | 1501 | 580 | 1280 | 324 | 96 | Single | ||
| 700 | 1600 | 350 | 1650 | 1701 | 580 | 1480 | 324 | 106 | Single | ||
| 700 | 1800 | 350 | 1850 | 1901 | 580 | 1680 | 324 | 117 | Single | ||
| 700 | 1900 | 350 | 1950 | 2001 | 580 | 1780 | 324 | 122 | Single | ||
| 700 | 2000 | 350 | 2050 | 2101 | 580 | 1880 | 315 | 127 | Single | ||
| 700 | 2100 | 350 | 2150 | 2201 | 580 | 1980 | 315 | 133 | Single | ||
| 700 | 2300 | 350 | 2350 | 2401 | 580 | 2180 | 315 | 143 | Single | ||
| 800 | 1200 | 350 | 1250 | 1301 | 720 | 1120 | 324 | 92 | Single | ||
| 800 | 1400 | 350 | 1450 | 1501 | 680 | 1280 | 324 | 106 | Single | ||
| 800 | 1600 | 350 | 1650 | 1701 | 680 | 1480 | 324 | 118 | Single | ||
| 800 | 1800 | 350 | 1850 | 1901 | 680 | 1680 | 324 | 129 | Single | ||
| 800 | 1900 | 350 | 1950 | 2001 | 680 | 1780 | 324 | 135 | Single | ||
| 800 | 2000 | 350 | 2050 | 2101 | 680 | 1880 | 315 | 141 | Single | ||
| 800 | 2100 | 350 | 2150 | 2201 | 680 | 1980 | 315 | 147 | Single | ||
| 800 | 2300 | 350 | 2350 | 2401 | 680 | 2180 | 315 | 159 | Single | ||
| 900 | 1400 | 350 | 1450 | 1501 | 780 | 1280 | 324 | 115 | Single | ||
| 900 | 1600 | 350 | 1650 | 1701 | 780 | 1480 | 324 | 127 | Single | ||
| 900 | 1800 | 350 | 1850 | 1901 | 780 | 1680 | 324 | 140 | Single | ||
| 900 | 1900 | 350 | 1950 | 2001 | 780 | 1780 | 324 | 146 | Single | ||
| 900 | 2000 | 350 | 2050 | 2101 | 780 | 1880 | 315 | 155 | Single | ||
| 900 | 2100 | 350 | 2150 | 2201 | 780 | 1980 | 315 | 161 | Single | ||
| 900 | 2300 | 350 | 2350 | 2401 | 780 | 2180 | 315 | 173 | Single | ||
| 1000 | 1400 | 350 | 1450 | 1501 | 880 | 1280 | 324 | 131 | Double | ||
| 1000 | 1600 | 350 | 1650 | 1701 | 880 | 1480 | 324 | 147 | Double | ||
| 1000 | 1800 | 350 | 1850 | 1901 | 880 | 1680 | 324 | 162 | Double | ||
| 1000 | 1900 | 350 | 1950 | 2001 | 880 | 1780 | 324 | 169 | Double | ||
| 1000 | 2000 | 350 | 2050 | 2101 | 880 | 1880 | 315 | 176 | Double | ||
| 1000 | 2100 | 350 | 2150 | 2201 | 880 | 1980 | 315 | 184 | Double | ||
| 1000 | 2300 | 350 | 2350 | 2401 | 880 | 2180 | 315 | 200 | Double | ||
| 1200 | 1400 | 350 | 1450 | 1501 | 1080 | 1280 | 324 | 152 | Double | ||
| 1200 | 1600 | 350 | 1650 | 1701 | 1080 | 1480 | 324 | 168 | Double | ||
| 1200 | 1800 | 350 | 1850 | 1901 | 1080 | 1680 | 324 | 185 | Double | ||
| 1200 | 1900 | 350 | 1950 | 2001 | 1080 | 1780 | 324 | 193 | Double | ||
| 1200 | 2000 | 350 | 2050 | 2101 | 1080 | 1880 | 315 | 202 | Double | ||
| 1200 | 2100 | 350 | 2150 | 2201 | 1080 | 1980 | 315 | 211 | Double | ||
| 1200 | 2300 | 350 | 2350 | 2401 | 1080 | 2180 | 315 | 228 | Double | ||
| 1400 | 1600 | 350 | 1650 | 1710 | 1280 | 1480 | 324 | 190 | Double | ||
| 1400 | 1800 | 350 | 1850 | 1910 | 1280 | 1680 | 324 | 209 | Double | ||
| 1400 | 1900 | 350 | 1950 | 2010 | 1280 | 1780 | 324 | 218 | Double | ||
| 1400 | 2000 | 350 | 2050 | 2110 | 1280 | 1880 | 315 | 228 | Double | ||
| 1400 | 2100 | 350 | 2150 | 2210 | 1280 | 1980 | 315 | 238 | Double | ||
| 1400 | 2300 | 350 | 2350 | 2410 | 1280 | 2180 | 315 | 257 | Double | ||
| 1600 | 1600 | 350 | 1650 | 1710 | 1480 | 1480 | 312 | 220 | Double | ||
| 1600 | 1800 | 350 | 1850 | 1910 | 1480 | 1680 | 312 | 240 | Double | ||
| 1600 | 1900 | 350 | 1950 | 2010 | 1480 | 1780 | 312 | 250 | Double | ||
| 1600 | 2000 | 350 | 2050 | 2110 | 1480 | 1880 | 312 | 260 | Double | ||
| 1600 | 2100 | 350 | 2150 | 2210 | 1480 | 1980 | 312 | 270 | Double | ||
Depth 400 mm
| Model | Dimensions (mm) | Outside dimension (mm) | Height incl. eyebolt (mm) | (mm) | (mm) | Weight (kg) | Door type | ||||
| Light beige | Cream | | | | | Width | Height | ||||
| 700 | 1400 | 400 | 1450 | 1501 | 580 | 1280 | 374 | 99 | Single | ||
| 700 | 1600 | 400 | 1650 | 1701 | 580 | 1480 | 374 | 110 | Single | ||
| 700 | 1800 | 400 | 1850 | 1901 | 580 | 1680 | 374 | 121 | Single | ||
| 700 | 1900 | 400 | 1950 | 2001 | 580 | 1780 | 374 | 127 | Single | ||
| 700 | 2000 | 400 | 2050 | 2101 | 580 | 1880 | 365 | 133 | Single | ||
| 700 | 2100 | 400 | 2150 | 2201 | 580 | 1980 | 365 | 138 | Single | ||
| 700 | 2300 | 400 | 2350 | 2401 | 580 | 2180 | 365 | 144 | Single | ||
| 800 | 1400 | 400 | 1450 | 1501 | 680 | 1280 | 374 | 109 | Single | ||
| 800 | 1600 | 400 | 1650 | 1701 | 680 | 1480 | 374 | 121 | Single | ||
| 800 | 1800 | 400 | 1850 | 1901 | 680 | 1680 | 374 | 133 | Single | ||
| 800 | 1900 | 400 | 1950 | 2001 | 680 | 1780 | 374 | 139 | Single | ||
| 800 | 2000 | 400 | 2050 | 2101 | 680 | 1880 | 365 | 145 | Single | ||
| 800 | 2100 | 400 | 2150 | 2201 | 680 | 1980 | 365 | 151 | Single | ||
| 800 | 2300 | 400 | 2350 | 2401 | 680 | 2180 | 365 | 163 | Single | ||
| 900 | 1400 | 400 | 1450 | 1501 | 780 | 1280 | 374 | 119 | Single | ||
| 900 | 1600 | 400 | 1650 | 1701 | 780 | 1480 | 374 | 131 | Single | ||
| 900 | 1800 | 400 | 1850 | 1901 | 780 | 1680 | 374 | 144 | Single | ||
| 900 | 1900 | 400 | 1950 | 2001 | 780 | 1780 | 374 | 151 | Single | ||
| 900 | 2000 | 400 | 2050 | 2101 | 780 | 1880 | 365 | 160 | Single | ||
| 900 | 2100 | 400 | 2150 | 2201 | 780 | 1980 | 365 | 166 | Single | ||
| 900 | 2300 | 400 | 2350 | 2401 | 780 | 2180 | 365 | 178 | Single | ||
| 1000 | 1400 | 400 | 1450 | 1501 | 880 | 1280 | 374 | 137 | Double | ||
| 1000 | 1600 | 400 | 1650 | 1701 | 880 | 1480 | 374 | 152 | Double | ||
| 1000 | 1800 | 400 | 1850 | 1901 | 880 | 1680 | 374 | 167 | Double | ||
| 1000 | 1900 | 400 | 1950 | 2001 | 880 | 1780 | 374 | 175 | Double | ||
| 1000 | 2000 | 400 | 2050 | 2101 | 880 | 1880 | 365 | 183 | Double | ||
| 1000 | 2100 | 400 | 2150 | 2201 | 880 | 1980 | 365 | 190 | Double | ||
| 1000 | 2300 | 400 | 2350 | 2401 | 880 | 2180 | 365 | 206 | Double | ||
| 1200 | 1400 | 400 | 1450 | 1510 | 1080 | 1280 | 374 | 157 | Double | ||
| 1200 | 1600 | 400 | 1650 | 1710 | 1080 | 1480 | 374 | 174 | Double | ||
| 1200 | 1800 | 400 | 1850 | 1910 | 1080 | 1680 | 374 | 191 | Double | ||
| 1200 | 1900 | 400 | 1950 | 2010 | 1080 | 1780 | 374 | 199 | Double | ||
| 1200 | 2000 | 400 | 2050 | 2110 | 1080 | 1880 | 365 | 207 | Double | ||
| 1200 | 2100 | 400 | 2150 | 2210 | 1080 | 1980 | 365 | 216 | Double | ||
| 1200 | 2300 | 400 | 2350 | 2410 | 1080 | 2180 | 365 | 232 | Double | ||
| 1400 | 1600 | 400 | 1650 | 1710 | 1280 | 1480 | 374 | 196 | Double | ||
| 1400 | 1800 | 400 | 1850 | 1910 | 1280 | 1680 | 374 | 215 | Double | ||
| 1400 | 1900 | 400 | 1950 | 2010 | 1280 | 1780 | 374 | 225 | Double | ||
| 1400 | 2000 | 400 | 2050 | 2110 | 1280 | 1880 | 365 | 235 | Double | ||
| 1400 | 2100 | 400 | 2150 | 2210 | 1280 | 1980 | 365 | 245 | Double | ||
| 1400 | 2300 | 400 | 2350 | 2410 | 1280 | 2180 | 365 | 264 | Double | ||
| 1600 | 1600 | 400 | 1650 | 1710 | 1480 | 1480 | 362 | 226 | Double | ||
| 1600 | 1800 | 400 | 1850 | 1910 | 1480 | 1680 | 362 | 247 | Double | ||
| 1600 | 1900 | 400 | 1950 | 2010 | 1480 | 1780 | 362 | 257 | Double | ||
| 1600 | 2000 | 400 | 2050 | 2110 | 1480 | 1880 | 362 | 267 | Double | ||
| 1600 | 2100 | 400 | 2150 | 2210 | 1480 | 1980 | 362 | 278 | Double | ||
Depth 500 mm
| Model | Dimensions (mm) | Outside dimension (mm) | Height incl. eyebolt (mm) | Mounting plate dimensions (mm) | Effective depth (mm) | Weight (kg) | Door type | ||||
| Light beige | Cream | | | Depth | | Width | Height | ||||
| 700 | 1000 | 500 | 1050 | 1101 | 620 | 920 | 474 | 79 | Single | ||
| 700 | 1200 | 500 | 1250 | 1301 | 620 | 1120 | 474 | 91 | Single | ||
| 700 | 1400 | 500 | 1450 | 1501 | 580 | 1280 | 474 | 106 | Single | ||
| 700 | 1600 | 500 | 1650 | 1701 | 580 | 1480 | 474 | 118 | Single | ||
| 700 | 1800 | 500 | 1850 | 1901 | 580 | 1680 | 474 | 130 | Single | ||
| 700 | 1900 | 500 | 1950 | 2001 | 580 | 1780 | 474 | 136 | Single | ||
| 700 | 2000 | 500 | 2050 | 2101 | 580 | 1880 | 465 | 142 | Single | ||
| 700 | 2100 | 500 | 2150 | 2201 | 580 | 1980 | 465 | 148 | Single | ||
| 700 | 2300 | 500 | 2350 | 2401 | 580 | 2180 | 465 | 160 | Single | ||
| 800 | 1200 | 500 | 1250 | 1301 | 720 | 1120 | 474 | 101 | Single | ||
| 800 | 1400 | 500 | 1450 | 1501 | 680 | 1280 | 474 | 116 | Single | ||
| 800 | 1600 | 500 | 1650 | 1701 | 680 | 1480 | 474 | 128 | Single | ||
| 800 | 1800 | 500 | 1850 | 1901 | 680 | 1680 | 474 | 141 | Single | ||
| 800 | 1900 | 500 | 1950 | 2001 | 680 | 1780 | 474 | 147 | Single | ||
| 800 | 2000 | 500 | 2050 | 2101 | 680 | 1880 | 465 | 155 | Single | ||
| 800 | 2100 | 500 | 2150 | 2201 | 680 | 1980 | 465 | 161 | Single | ||
| 800 | 2300 | 500 | 2350 | 2401 | 680 | 2180 | 465 | 173 | Single | ||
| 900 | 1400 | 500 | 1450 | 1501 | 780 | 1280 | 474 | 124 | Single | ||
| 900 | 1600 | 500 | 1650 | 1701 | 780 | 1480 | 474 | 139 | Single | ||
| 900 | 1800 | 500 | 1850 | 1901 | 780 | 1680 | 474 | 152 | Single | ||
| 900 | 1900 | 500 | 1950 | 2001 | 780 | 1780 | 474 | 159 | Single | ||
| 900 | 2000 | 500 | 2050 | 2101 | 780 | 1880 | 465 | 168 | Single | ||
| 900 | 2100 | 500 | 2150 | 2201 | 780 | 1980 | 465 | 174 | Single | ||
| 900 | 2300 | 500 | 2350 | 2401 | 780 | 2180 | 465 | 187 | Single | ||
| 1000 | 1400 | 500 | 1450 | 1501 | 880 | 1280 | 474 | 148 | Double | ||
| 1000 | 1600 | 500 | 1650 | 1701 | 880 | 1480 | 474 | 168 | Double | ||
| 1000 | 1800 | 500 | 1850 | 1901 | 880 | 1680 | 474 | 178 | Double | ||
| 1000 | 1900 | 500 | 1950 | 2001 | 880 | 1780 | 474 | 186 | Double | ||
| 1000 | 2000 | 500 | 2050 | 2101 | 880 | 1880 | 465 | 196 | Double | ||
| 1000 | 2100 | 500 | 2150 | 2201 | 880 | 1980 | 465 | 203 | Double | ||
| 1000 | 2300 | 500 | 2350 | 2401 | 880 | 2180 | 465 | 218 | Double | ||
| 1200 | 1400 | 500 | 1450 | 1510 | 1080 | 1280 | 474 | 167 | Double | ||
| 1200 | 1600 | 500 | 1650 | 1710 | 1080 | 1480 | 474 | 185 | Double | ||
| 1200 | 1800 | 500 | 1850 | 1910 | 1080 | 1680 | 474 | 203 | Double | ||
| 1200 | 1900 | 500 | 1950 | 2010 | 1080 | 1780 | 474 | 212 | Double | ||
| 1200 | 2000 | 500 | 2050 | 2110 | 1080 | 1880 | 465 | 221 | Double | ||
| 1200 | 2100 | 500 | 2150 | 2210 | 1080 | 1980 | 465 | 230 | Double | ||
| 1200 | 2300 | 500 | 2350 | 2410 | 1080 | 2180 | 465 | 248 | Double | ||
| 1400 | 1600 | 500 | 1650 | 1710 | 1280 | 1480 | 474 | 207 | Double | ||
| 1400 | 1800 | 500 | 1850 | 1910 | 1280 | 1680 | 474 | 227 | Double | ||
| 1400 | 1900 | 500 | 1950 | 2010 | 1280 | 1780 | 474 | 237 | Double | ||
| 1400 | 2000 | 500 | 2050 | 2110 | 1280 | 1880 | 465 | 248 | Double | ||
| 1400 | 2100 | 500 | 2150 | 2210 | 1280 | 1980 | 465 | 258 | Double | ||
| 1400 | 2300 | 500 | 2350 | 2410 | 1280 | 2180 | 465 | 279 | Double | ||
| 1600 | 1600 | 500 | 1650 | 1710 | 1480 | 1480 | 462 | 247 | Double | ||
| 1600 | 1800 | 500 | 1850 | 1910 | 1480 | 1680 | 462 | 260 | Double | ||
| 1600 | 1900 | 500 | 1950 | 2010 | 1480 | 1780 | 462 | 271 | Double | ||
| 1600 | 2000 | 500 | 2050 | 2110 | 1480 | 1880 | 462 | 282 | Double | ||
| 1600 | 2100 | 500 | 2150 | 2210 | 1480 | 1980 | 462 | 294 | Double | ||
| 1600 | 2300 | 500 | 2350 | 2410 | 1480 | 2180 | 462 | 316 | Double | ||
