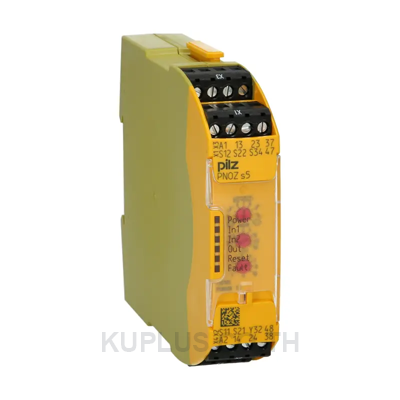

Pilz Configurable 24 VDC Safety Relay Dual Channel With 2 Safety Contacts ( 750105 )

Pilz Configurable 24 VDC Safety Relay Dual Channel With 2 Safety Contacts ( 750105 )

Name: Pilz Configurable 24 VDC Safety Relay Dual Channel With 2 Safety Contacts ( 750105 )
SKU: 750105
Price: 13563.41 THB
Availability: OutOfStock

รหัสสินค้า: 750105

฿13,563

สอบถามสต็อก

รายละเอียดสินค้า

PNOZsigma safety relay (standalone), inputs: 1/2-channel wiring with/
without detection of shorts across contacts, manual/automatic start,
outputs: 2 N/O, 2 N/O t-d (t = 0.04 - 300 s), 1 SC, UB = 24 V DC, width:
22.5 mm, plug-in screw terminals, monitoring of E-STOP, safety gates, light
curtain.

SPECIFICATION

Manufacturer	PILZ
Type of module	safety relay
Manufacturer series	PNOZ s5
Number of inputs	3
Number of outputs	4
Mounting	for DIN rail mounting
Operating temperature	-10...55°C
Electrical connection	screw terminals
Safety category	4
Safety outputs	NO delay on x2, NO x2
Signal output	transistor 24V DC
IP rating	IP40
Body dimensions	98x22.5x120mm
Contacts electrical parameters	24V DC / 6A, 240V AC / 6A
Input 1 properties	2 channels with or without between-channels short circuit detection
Application	emergency stop, safety gates and light beam devices
Trade name	PNOZsigma
