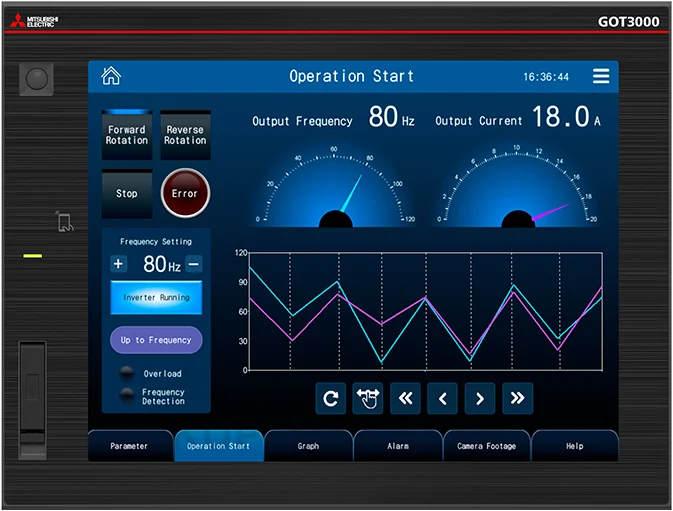

GT3712-XRBD GOT3000; 12.1" XGA TFT LCD, 16M colors, Black, 24V DC
รหัสสินค้า: GT3712-XRBD
ยอดเข้าชม - ครั้ง
฿70,908
สอบถามสต็อก
เพิ่มลงตะกร้าแล้ว
ไปที่ตะกร้า
รายละเอียดสินค้า
| Model name | GT3712-XRBD |
| Overview | 12.1”, XGA, TFT color LCD 16 million colors, Panel color: Black, Power supply voltage: 24 V DC |
| Conformance standard | UL cUL CE(EMC) CE(RoHS) KC |
| Sales status | On sale |
| Display section*1 *2 | Display device | |
| Screen size | ||
| Resolution | ||
| Display size | ||
| Display color | ||
| Brightness adjustment | ||
| Backlight | ||
| Backlight life*3 | ||
| Touch panel*4 | Type | |
| Simultaneous press | ||
| Life | ||
| Human sensor | Detection method | |
| Detection length | ||
| Detection temperature | ||
| Memory capacity | ||
| User memory | ||
| Built-in clock precision | ||
| Battery | Type | |
| Backup target | ||
| Life | ||
| Built-in interface | RS-232/422/485 | Number of channel |
| Transmission speed | ||
| Connector shape | ||
| Switching between RS-232 and RS-422/485 | ||
| Ethernet | Number of channel | |
| Data transfer method | ||
| Connector shape | ||
| USB (device/host) | Number of channel | |
| USB version | ||
| Connector shape | ||
| USB (host) | Number of channel | |
| USB version | ||
| Connector shape | ||
| Digital video output | Number of channel | |
| Connector shape | ||
| SD memory card*9 | ||
| Contactless tag*10 | Number of channel | |
| Compliance standards | ||
| Extension interface | ||
| Buzzer sound | ||
| LED specifications | POWER LED | |
| Installation method | ||
| Panel color | ||
| Protective structure*11 | ||
| External dimensions | ||
| Panel cut dimensions | ||
| Weight (excluding a fitting) | ||
|
TFT color LCD
|
|
12.1"
|
|
XGA: 1024 x 768 dots
|
|
246.0 (W) x 184.5 (H) mm
(9.69 (W) x 7.26 (H) inch) |
|
16 million colors
|
|
32 levels (switchable between normal mode and low brightness mode)
|
|
LED (Not replaceable)
|
|
50000 h or more (time it takes for the display intensity to reach 50% at an ambient operating temperature of 25°C)
|
|
Analog resistive film*5*6
|
|
Not available (Only 1 point can be touched.)*7
|
|
1 million touches or more (operating force: 0.98 N or less)
|
|
Pyroelectric type
|
|
1 m
|
|
Temperature difference between human body and ambient air: 4°C or higher
|
|
ROM: 512 MB
RAM: 2 GB |
|
Memory for storage (ROM) : 256 MB*8
Memory for operation (RAM) : 768 MB |
|
±90 seconds/month (Ambient temperature: 25°C)
|
|
GT11-50BAT lithium battery (Sold separately)
|
|
Clock data
|
|
Approx. 5 years (Ambient temperature: 25°C)
|
|
1 channel
|
|
115200, 57600, 38400, 19200, 9600, 4800 bps
|
|
D-sub 9-pin (female), M2.6 metric screw thread
|
|
Set with GT Works3 or the utility
|
|
2 channels
|
|
1000BASE-T, 100BASE-TX, 10BASE-T
|
|
RJ45 (modular jack) AUTO MDI/MDI-X
|
|
1 channel (front face)
|
|
USB 3.2 Gen1 (USB 3.0) (SuperSpeed 5 Gbps)
|
|
USB Type-C
|
|
1 channel (rear face)
|
|
USB 3.2 Gen1 (USB 3.0) (SuperSpeed 5 Gbps)
|
|
USB Type-A
|
|
1 channel
|
|
HDMI Type A connector
|
|
1 channel, SDHC compliant (maximum 32 GB)
|
|
1 channel
|
|
ISO/IEC 15693 (Type 5 tag)
|
|
For installing a communication unit or an option unit
|
|
Single tone (tone and tone length adjustable)
|
|
1 color (lime green)
|
|
Standard
|
|
Black
|
|
Front: IP66F*12, IP67F*12*13, NEMA Type 4X
Enclosure interior: IP2X |
|
316 (W) x 240 (H) x 61 (D) mm
(12.44 (W) x 9.45 (H) x 2.40 (D) inch) |
|
302 (W) x 228 (H) mm
(11.89 (W) x 8.98 (H) inch) |
|
2.0 kg
(4.4 lb) |
