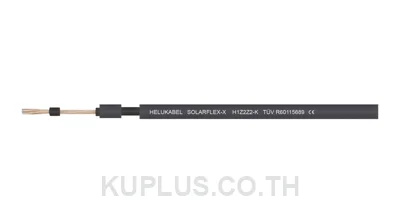

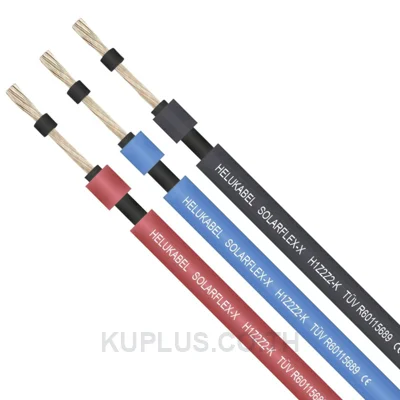

SOLARFLEX®-X H1Z2Z2-K Solar Cable 1 x 2.5 sq.mm, Black #HELU-713529
Part no.: HELU-713529
Views -
Ask for price
Ask about stock
Added to cart
Go to cart
Product details
Article details
| Item description | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 2.5 mm² |
| Sheath colour | black |
| Outer Ø mm (approx.) | 4.8 - 5.4 |
| AWG (approx.) | 14 |
| Cu-weight kg/km | 24.0 |
| Weight kg/km (approx.) | 45.0 |
| Copper base in EUR / 100 kg | 150 |
| VPE/m | 500 |
| Cut-to-length service available | no |
| EAN/GTIN | 4060892258985 |
| Customs tariff number | 85446010 |
| Part no. | No.cores x | Sheath | Outer Ø min. - max. mm | Cop. kg / km | Weight app. kg / km | AWG-No. |
|---|---|---|---|---|---|---|
| 1 x 2,5 | black | 4,8 - 5,4 | 24,0 | 45,0 | 14 | |
| 1 x 2,5 | blue | 4,8 - 5,4 | 24,0 | 45,0 | 14 | |
| 1 x 2,5 | red | 4,8 - 5,4 | 24,0 | 45,0 | 14 | |
| 1 x 4 | black | 5,2 - 5,9 | 38,4 | 60,0 | 12 | |
| 1 x 4 | blue | 5,2 - 5,9 | 38,4 | 60,0 | 12 | |
| 1 x 4 | red | 5,2 - 5,9 | 38,4 | 60,0 | 12 | |
| 1 x 6 | black | 5,8 - 6,4 | 57,6 | 80,0 | 10 | |
| 1 x 6 | blue | 5,8 - 6,4 | 57,6 | 80,0 | 10 | |
| 1 x 6 | red | 5,8 - 6,4 | 57,6 | 80,0 | 10 | |
| 1 x 10 | black | 6,9 - 7,7 | 96,0 | 126,0 | 8 | |
| 1 x 10 | blue | 6,9 - 7,7 | 96,0 | 126,0 | 8 | |
| 1 x 10 | red | 6,9 - 7,7 | 96,0 | 126,0 | 8 |
