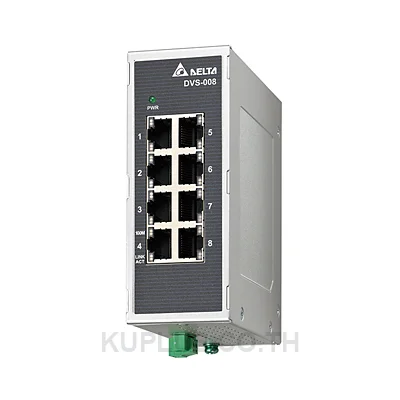

DVS-008I00 Unmanaged Industrial 8-Port FE Ethernet Switches

Features & Benefits

• Voltage Dips protection inside, great to use in unstable power sourcing systems

• 12 to 48 VDC terminal block power input

• Compatible with various industrial protocols of EtherNet/IP, Profinet, CC-LINK IE and DNP 3.0

Specifications

1. Standard Compliance
2. IEEE 802.3 10Base-T
3. IEEE 802.3u 100Base-T(X) and 100Base-FX
4. IEEE 802.3x Flow Control
5. Processing Type
6. Store and Forward
7. IEEE 802.3x Flow control in full duplex, back-pressure flow control in half duplex

8. ---

1. Fast Ethernet Ports
2. RJ45 Ports: 8 10/100Base-T, auto MDI/MDI-X, auto negotiation

3. ---

1. Switching Capacity: 1.6Gbps, Wired speed, Non-blocking switching fabric
2. Forwarding Rate: 2.4Mpps
3. MAC Address Table: 8K
4. Packet Buffer Memory: 1M bits

5. ---

1. Input Voltage: 1 set, 12 to 48 VDC terminal block input
2. Input Current: Max. 0.18A
3. Overload Current Protection: Present, Max. input current 3A
4. Reverse Polarity Protection: Present
5. Buffer Time: Min. 10ms at 24VDC

6. ---

1. Housing: IP40 metal case
2. Dimensions: 145.3 mm(H) × 45 mm(W) × 108.7 mm (D)
3. Weight: 300g
4. Installation: Industrial DIN-Rail and wall mounting

5. ---

1. Operating Temperature: -10℃ to 60℃(14℉ to 140℉), tested @ -25℃ to 70℃(-13℉ to 158℉)
2. Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)
3. Ambient Relative Humidity: 5% to 95%(non-condensing)

4. ---

1. Safety: UL 508, EN 62368-1, IEC 61131-2
2. EMI: FCC 47 CFR Part 15 Subpart B Class B, IEC 61000-6-4, EN 55022
3. EMS: IEC 61000-6-2
4. Environmental Type Tests
5. Cold Temperature: IEC 60068-2-1
6. Dry Heat: IEC 60068-2-2
7. Humidity: IEC 60068-2-30
8. Shock: IEC 60255-21-2
9. Freefall: IEC 60068-2-32
10. Vibration: IEC 60068-2-6
11. Hi-Pot: 1.5KV

Unmanaged Industrial 8-Port FE Ethernet Switches    10/100Base-T(X) RJ45 Ports, Switching Capacity    1.6Gbps, Forwarding Rate 2.4Mpps, 12-48Vdc/0.18A
