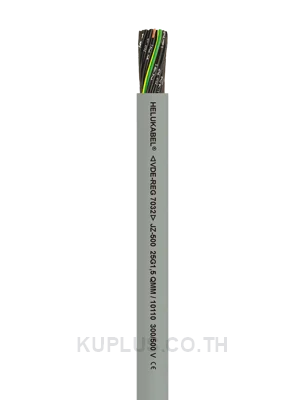

สายมัลติคอร์ JZ-500 2 x 0.5 sq.mm #10001
รหัสสินค้า: 10001
ยอดเข้าชม - ครั้ง
สอบถามราคา
สอบถามสต็อก
เพิ่มลงตะกร้าแล้ว
ไปที่ตะกร้า
สายมัลติคอร์ JZ-500 2 คอร์ ขนาดตัวนำ 0.5 sq.mm ไม่มีสายดิน
ข้อมูลจำเพาะ
| ซีรีส์ | JZ-500 |
|---|---|
| รุ่นย่อย | มาตรฐาน |
| ประเภท | สายมัลติคอร์ (Flexible control cable) |
| ฉนวน | PVC |
| ตัวนำ | ทองแดงเส้นเล็ก (ตีเกลียว) |
| คอร์มีเลขกำกับ | ใช่ |
| จำนวนคอร์ | 2 คอร์ |
| ขนาดตัวนำต่อคอร์ | 0.5 sq.mm |
| สายดิน (เขียว-เหลือง) | ไม่มี |
| แรงดันใช้งาน (Uo/U) | 300/500 V |
| รหัสสินค้า | 10001 |
รายละเอียดสินค้า
JZ-500 / OZ-500 HELUKABEL JZ-500 Flexible Control Cables
| Part no. | No. cores x cross-sec. mm² | AWG, approx. | Outer Ø mm, approx. | Cu-weight kg/km | Weight kg/km, approx. | Part no. | No. cores x cross-sec. mm² | AWG, approx. | Outer Ø mm, approx. | Cu-weight kg/km | Weight kg/km, approx. | |
| 2 x 0.5 | 20 | 4.8 | 9.6 | 40.0 | 25 G 0.5 | 20 | 12.6 | 120.0 | 270.0 | |||
| 3 G 0.5 | 20 | 5.1 | 14.4 | 46.0 | 30 G 0.5 | 20 | 13.5 | 144.0 | 310.0 | |||
| 3 x 0.5 | 20 | 5.1 | 14.4 | 46.0 | 32 G 0.5 | 20 | 14.0 | 154.0 | 323.0 | |||
| 4 G 0.5 | 20 | 5.5 | 19.0 | 56.0 | 34 G 0.5 | 20 | 14.7 | 163.0 | 362.0 | |||
| 4 x 0.5 | 20 | 5.5 | 19.0 | 56.0 | 40 G 0.5 | 20 | 15.8 | 192.0 | 434.0 | |||
| 5 G 0.5 | 20 | 6.2 | 24.0 | 65.0 | 42 G 0.5 | 20 | 15.8 | 202.0 | 449.0 | |||
| 5 x 0.5 | 20 | 6.2 | 24.0 | 65.0 | 50 G 0.5 | 20 | 17.3 | 240.0 | 513.0 | |||
| 6 G 0.5 | 20 | 6.7 | 29.0 | 75.0 | 52 G 0.5 | 20 | 17.3 | 252.0 | 534.0 | |||
| 7 G 0.5 | 20 | 6.7 | 33.6 | 80.0 | 61 G 0.5 | 20 | 18.5 | 293.0 | 625.0 | |||
| 7 x 0.5 | 20 | 6.7 | 33.6 | 80.0 | 65 G 0.5 | 20 | 19.2 | 312.0 | 682.0 | |||
| 8 G 0.5 | 20 | 7.4 | 38.0 | 97.0 | 80 G 0.5 | 20 | 21.3 | 384.0 | 780.0 | |||
| 8 x 0.5 | 20 | 7.4 | 38.0 | 97.0 | 100 G 0.5 | 20 | 23.8 | 480.0 | 980.0 | |||
| 10 G 0.5 | 20 | 8.6 | 48.0 | 116.0 | 2 x 0.75 | 19 | 5.3 | 14.4 | 46.0 | |||
| 12 G 0.5 | 20 | 9.1 | 58.0 | 135.0 | 3 G 0.75 | 19 | 5.6 | 21.6 | 54.0 | |||
| 12 x 0.5 | 20 | 9.1 | 58.0 | 135.0 | 3 x 0.75 | 19 | 5.6 | 21.6 | 54.0 | |||
| 14 G 0.5 | 20 | 9.5 | 67.0 | 150.0 | 4 G 0.75 | 19 | 6.3 | 28.8 | 66.0 | |||
| 16 G 0.5 | 20 | 10.0 | 76.0 | 175.0 | 4 x 0.75 | 19 | 6.3 | 28.8 | 66.0 | |||
| 18 G 0.5 | 20 | 10.7 | 86.0 | 196.0 | 5 G 0.75 | 19 | 6.9 | 36.0 | 80.0 | |||
| 20 G 0.5 | 20 | 11.3 | 96.0 | 215.0 | 5 x 0.75 | 19 | 6.9 | 36.0 | 80.0 | |||
| 21 G 0.5 | 20 | 11.3 | 101.0 | 240.0 | 6 G 0.75 | 19 | 7.7 | 43.0 | 99.0 |
| Part no. | No. cores x cross-sec. mm² | AWG, approx. | Outer Ø mm, approx. | Cu-weight kg/km | Weight kg/km, approx. | Part no. | No. cores x cross-sec. mm² | AWG, approx. | Outer Ø mm, approx. | Cu-weight kg/km | Weight kg/km, approx. | |
| 6 x 0.75 | 19 | 7.7 | 43.0 | 99.0 | 56 G 1 | 18 | 22.1 | 538.0 | 920.0 | |||
| 7 G 0.75 | 19 | 7.7 | 50.0 | 110.0 | 61 G 1 | 18 | 22.7 | 586.0 | 1100.0 | |||
| 7 x 0.75 | 19 | 7.7 | 50.0 | 110.0 | 65 G 1 | 18 | 23.6 | 628.0 | 1180.0 | |||
| 8 G 0.75 | 19 | 8.3 | 58.0 | 130.0 | 80 G 1 | 18 | 26.3 | 768.0 | 1294.0 | |||
| 8 x 0.75 | 19 | 8.3 | 58.0 | 130.0 | 100 G 1 | 18 | 29.3 | 960.0 | 1644.0 | |||
| 9 G 0.75 | 19 | 9.1 | 65.0 | 153.0 | 2 x 1.5 | 16 | 6.4 | 29.0 | 70.0 | |||
| 10 G 0.75 | 19 | 9.8 | 72.0 | 162.0 | 3 G 1.5 | 16 | 6.8 | 43.0 | 90.0 | |||
| 12 G 0.75 | 19 | 10.1 | 86.0 | 179.0 | 3 x 1.5 | 16 | 6.8 | 43.0 | 90.0 | |||
| 12 x 0.75 | 19 | 10.1 | 86.0 | 179.0 | 4 G 1.5 | 16 | 7.6 | 58.0 | 109.0 | |||
| 14 G 0.75 | 19 | 10.8 | 101.0 | 214.0 | 4 x 1.5 | 16 | 7.6 | 58.0 | 109.0 | |||
| 15 G 0.75 | 19 | 11.4 | 108.0 | 218.0 | 5 G 1.5 | 16 | 8.3 | 72.0 | 131.0 | |||
| 18 G 0.75 | 19 | 12.2 | 130.0 | 257.0 | 5 x 1.5 | 16 | 8.3 | 72.0 | 131.0 | |||
| 19 G 0.75 | 19 | 12.2 | 137.0 | 264.0 | 6 G 1.5 | 16 | 9.2 | 86.0 | 157.0 | |||
| 20 G 0.75 | 19 | 12.8 | 144.0 | 286.0 | 7 G 1.5 | 16 | 9.2 | 101.0 | 184.0 | |||
| 21 G 0.75 | 19 | 12.8 | 151.0 | 320.0 | 7 x 1.5 | 16 | 9.2 | 101.0 | 184.0 | |||
| 25 G 0.75 | 19 | 14.3 | 180.0 | 365.0 | 8 G 1.5 | 16 | 10.1 | 115.0 | 216.0 | |||
| 27 G 0.75 | 19 | 14.5 | 195.0 | 382.0 | 8 x 1.5 | 16 | 10.1 | 115.0 | 216.0 | |||
| 32 G 0.75 | 19 | 15.9 | 230.0 | 455.0 | 9 G 1.5 | 16 | 11.1 | 129.0 | 259.0 | |||
| 34 G 0.75 | 19 | 16.7 | 245.0 | 510.0 | 10 G 1.5 | 16 | 12.0 | 144.0 | 275.0 | |||
| 37 G 0.75 | 19 | 16.7 | 266.0 | 537.0 | 11 G 1.5 | 16 | 12.0 | 158.0 | 300.0 | |||
| 40 G 0.75 | 19 | 18.0 | 288.0 | 595.0 | 12 G 1.5 | 16 | 12.4 | 173.0 | 309.0 | |||
| 41 G 0.75 | 19 | 18.1 | 296.0 | 607.0 | 12 x 1.5 | 16 | 12.4 | 173.0 | 309.0 | |||
| 42 G 0.75 | 19 | 18.1 | 302.0 | 612.0 | 14 G 1.5 | 16 | 13.0 | 202.0 | 345.0 | |||
| 50 G 0.75 | 19 | 19.8 | 360.0 | 735.0 | 16 G 1.5 | 16 | 13.9 | 230.0 | 386.0 | |||
| 61 G 0.75 | 19 | 21.2 | 439.0 | 845.0 | 18 G 1.5 | 16 | 14.8 | 259.0 | 440.0 | |||
| 65 G 0.75 | 19 | 22.0 | 468.0 | 895.0 | 19 G 1.5 | 16 | 14.8 | 279.0 | 445.0 | |||
| 80 G 0.75 | 19 | 24.3 | 576.0 | 1070.0 | 20 G 1.5 | 16 | 15.6 | 288.0 | 490.0 | |||
| 100 G 0.75 | 19 | 27.1 | 720.0 | 1322.0 | 21 G 1.5 | 16 | 15.6 | 302.0 | 555.0 | |||
| 2 x 1 | 18 | 5.6 | 19.2 | 60.0 | 25 G 1.5 | 16 | 17.6 | 360.0 | 620.0 | |||
| 3 G 1 | 18 | 6.1 | 29.0 | 72.0 | 27 G 1.5 | 16 | 17.6 | 389.0 | 670.0 | |||
| 3 x 1 | 18 | 6.1 | 29.0 | 72.0 | 32 G 1.5 | 16 | 19.5 | 461.0 | 790.0 | |||
| 4 G 1 | 18 | 6.6 | 38.0 | 86.0 | 34 G 1.5 | 16 | 20.2 | 490.0 | 830.0 | |||
| 4 x 1 | 18 | 6.6 | 38.0 | 86.0 | 37 G 1.5 | 16 | 20.2 | 533.0 | 892.0 | |||
| 5 G 1 | 18 | 7.5 | 48.0 | 104.0 | 41 G 1.5 | 16 | 22.1 | 591.0 | 996.0 | |||
| 5 x 1 | 18 | 7.5 | 48.0 | 104.0 | 42 G 1.5 | 16 | 22.1 | 605.0 | 1007.0 | |||
| 6 G 1 | 18 | 8.1 | 58.0 | 125.0 | 50 G 1.5 | 16 | 24.2 | 720.0 | 1250.0 | |||
| 7 G 1 | 18 | 8.1 | 67.0 | 141.0 | 56 G 1.5 | 16 | 25.1 | 806.0 | 1332.0 | |||
| 7 x 1 | 18 | 8.1 | 67.0 | 141.0 | 61 G 1.5 | 16 | 25.8 | 878.0 | 1440.0 | |||
| 8 G 1 | 18 | 9.0 | 77.0 | 175.0 | 65 G 1.5 | 16 | 26.9 | 936.0 | 1602.0 | |||
| 9 G 1 | 18 | 9.8 | 86.0 | 200.0 | 80 G 1.5 | 16 | 29.8 | 1152.0 | 1871.0 | |||
| 10 G 1 | 18 | 10.6 | 96.0 | 217.0 | 100 G 1.5 | 16 | 33.2 | 1440.0 | 2353.0 | |||
| 10 x 1 | 18 | 10.6 | 96.0 | 217.0 | 2 x 2.5 | 14 | 7.8 | 48.0 | 112.0 | |||
| 12 G 1 | 18 | 10.9 | 115.0 | 230.0 | 3 G 2.5 | 14 | 8.3 | 72.0 | 148.0 | |||
| 12 x 1 | 18 | 10.9 | 115.0 | 230.0 | 3 x 2.5 | 14 | 8.3 | 72.0 | 148.0 | |||
| 14 G 1 | 18 | 11.5 | 134.0 | 271.0 | 4 G 2.5 | 14 | 9.2 | 96.0 | 178.0 | |||
| 16 G 1 | 18 | 12.3 | 154.0 | 300.0 | 4 x 2.5 | 14 | 9.2 | 96.0 | 178.0 | |||
| 18 G 1 | 18 | 12.9 | 173.0 | 343.0 | 5 G 2.5 | 14 | 10.1 | 120.0 | 221.0 | |||
| 18 x 1 | 18 | 12.9 | 173.0 | 343.0 | 5 x 2.5 | 14 | 10.1 | 120.0 | 221.0 | |||
| 19 G 1 | 18 | 12.9 | 182.0 | 355.0 | 7 G 2.5 | 14 | 11.2 | 168.0 | 306.0 | |||
| 20 G 1 | 18 | 13.8 | 192.0 | 375.0 | 7 x 2.5 | 14 | 11.2 | 168.0 | 306.0 | |||
| 20 x 1 | 18 | 13.8 | 192.0 | 375.0 | 8 G 2.5 | 14 | 12.3 | 192.0 | 363.0 | |||
| 21 G 1 | 18 | 13.8 | 205.0 | 420.0 | 8 x 2.5 | 14 | 12.3 | 192.0 | 363.0 | |||
| 24 G 1 | 18 | 15.4 | 230.0 | 440.0 | 10 G 2.5 | 14 | 14.8 | 240.0 | 429.0 | |||
| 25 G 1 | 18 | 15.4 | 240.0 | 485.0 | 12 G 2.5 | 14 | 15.3 | 288.0 | 498.0 | |||
| 25 x 1 | 18 | 15.4 | 240.0 | 485.0 | 14 G 2.5 | 14 | 16.2 | 336.0 | 569.0 | |||
| 26 G 1 | 18 | 15.4 | 252.0 | 500.0 | 18 G 2.5 | 14 | 18.2 | 432.0 | 764.0 | |||
| 27 G 1 | 18 | 15.4 | 259.0 | 534.0 | 21 G 2.5 | 14 | 19.4 | 504.0 | 914.0 | |||
| 30 x 1 | 18 | 16.5 | 288.0 | 550.0 | 25 G 2.5 | 14 | 21.6 | 600.0 | 1044.0 | |||
| 34 G 1 | 18 | 17.9 | 326.0 | 650.0 | 34 G 2.5 | 14 | 25.2 | 816.0 | 1470.0 | |||
| 36 G 1 | 18 | 17.9 | 346.0 | 668.0 | 42 G 2.5 | 14 | 27.3 | 1008.0 | 1790.0 | |||
| 37 G 1 | 18 | 17.9 | 355.0 | 701.0 | 50 G 2.5 | 14 | 30.0 | 1200.0 | 2095.0 | |||
| 40 G 1 | 18 | 19.3 | 384.0 | 755.0 | 61 G 2.5 | 14 | 32.2 | 1464.0 | 2750.0 | |||
| 40 x 1 | 18 | 19.3 | 384.0 | 755.0 | 100 G 2.5 | 14 | 41.4 | 2400.0 | 4450.0 | |||
| 41 G 1 | 18 | 19.4 | 394.0 | 770.0 | 2 x 4 | 12 | 9.2 | 77.0 | 195.0 | |||
| 42 G 1 | 18 | 19.4 | 403.0 | 810.0 | 3 G 4 | 12 | 9.7 | 115.0 | 230.0 | |||
| 50 G 1 | 18 | 21.3 | 480.0 | 936.0 | 4 G 4 | 12 | 10.8 | 154.0 | 295.0 |
| Part no. | No. cores x cross-sec. mm² | AWG, approx. | Outer Ø mm, approx. | Cu-weight kg/km | Weight kg/km, approx. | Part no. | No. cores x cross-sec. mm² | AWG, approx. | Outer Ø mm, approx. | Cu-weight kg/km | Weight kg/km, approx. | |
| 5 G 4 | 12 | 12.1 | 192.0 | 361.0 | 4 G 25 | 4 | 25.1 | 960.0 | 1582.0 | |||
| 7 G 4 | 12 | 13.4 | 269.0 | 458.0 | 5 G 25 | 4 | 27.9 | 1200.0 | 1999.0 | |||
| 8 G 4 | 12 | 14.7 | 307.0 | 590.0 | 7 G 25 | 4 | 30.8 | 1680.0 | 2825.0 | |||
| 10 G 4 | 12 | 17.6 | 384.0 | 687.0 | 3 G 35 | 2 | 25.2 | 1008.0 | 1585.0 | |||
| 12 G 4 | 12 | 18.2 | 461.0 | 790.0 | 4 G 35 | 2 | 27.9 | 1344.0 | 2105.0 | |||
| 3 G 6 | 10 | 11.9 | 173.0 | 355.0 | 5 G 35 | 2 | 31.0 | 1680.0 | 2633.0 | |||
| 4 G 6 | 10 | 13.2 | 230.0 | 424.0 | 3 G 50 | 1 | 29.9 | 1440.0 | 2550.0 | |||
| 5 G 6 | 10 | 14.7 | 288.0 | 525.0 | 4 G 50 | 1 | 33.0 | 1920.0 | 2940.0 | |||
| 7 G 6 | 10 | 16.2 | 403.0 | 625.0 | 5 G 50 | 1 | 37.0 | 2400.0 | 2936.0 | |||
| 3 G 10 | 8 | 14.8 | 288.0 | 540.0 | 3 G 70 | 2/0 | 34.1 | 2016.0 | 3180.0 | |||
| 4 G 10 | 8 | 16.4 | 384.0 | 701.0 | 4 G 70 | 2/0 | 37.9 | 2688.0 | 4090.0 | |||
| 5 G 10 | 8 | 18.3 | 480.0 | 858.0 | 5 G 70 | 2/0 | 42.4 | 3360.0 | 5443.0 | |||
| 7 G 10 | 8 | 20.2 | 672.0 | 1106.0 | 3 G 95 | 3/0 | 39.6 | 2736.0 | 4680.0 | |||
| 3 G 16 | 6 | 18.4 | 461.0 | 827.0 | 4 G 95 | 3/0 | 43.9 | 3648.0 | 5540.0 | |||
| 4 G 16 | 6 | 20.4 | 614.0 | 1035.0 | 5 G 95 | 3/0 | 49.0 | 4560.0 | 6931.0 | |||
| 5 G 16 | 6 | 22.8 | 768.0 | 1259.0 | 4 G 120 | 4/0 | 48.8 | 4608.0 | 7000.0 | |||
| 7 G 16 | 6 | 25.2 | 1075.0 | 1780.0 | 4 G 150 | 300 kcmil | 54.4 | 5760.0 | 8340.0 | |||
| 3 G 25 | 4 | 22.4 | 720.0 | 1186.0 | 4 G 185 | 350 kcmil | 62.3 | 7104.0 | 9904.0 |
