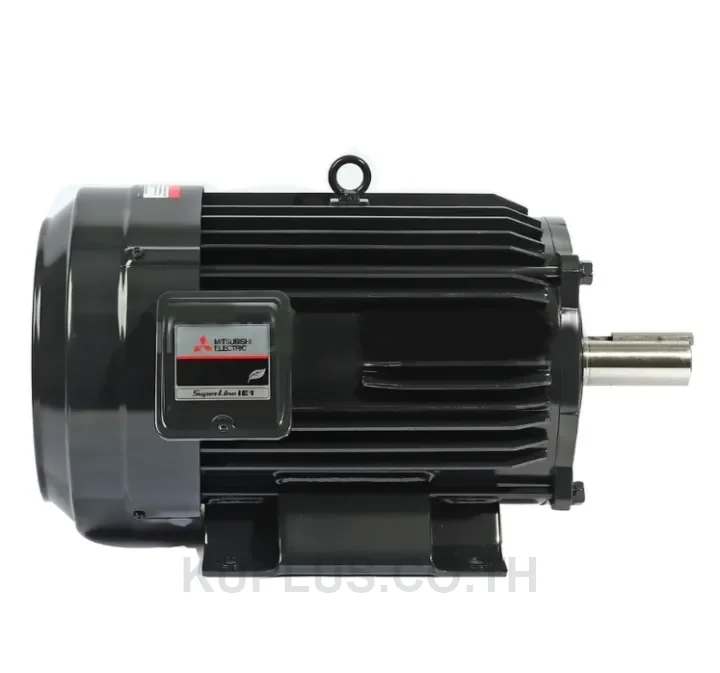

มอเตอร์ไฟฟ้าขาตั้ง SF-QR 7.5KW 4P 10HP 3Phase 380/415V 4P (H)
Product details
Horizontal foot type,
10HP, 4Pole, 132M frame,
IP55, Totally enclosed fan cooled type,
Class F, HT,
| Model | กำลังมอเตอร์ | ระบบไฟ | จำนวนโพล | ความเร็วรอบ | เพลาออก | ราคา | ||
| HP | kW | V | เฟส | Pole | rpm | mm | ||
| SF-QR Series ชนิดหุ้มมิด : IP.44 Insulation Class B (1/4-2HP) Class F (3-10HP) | ||||||||
| SF-QR | 1/4 HP | 0.20 kW | 220/380 | 3 | 4P | 1450 | 11 | 2,890 |
| SF-QR | 1/2 HP | 0.40 kW | 220/380 | 3 | 4P | 1450 | 14 | 3,570 |
| SF-QR | 1.0 HP | 0.75 kW | 220/380 | 3 | 4P | 1450 | 19 | 4,520 |
| SF-QR | 2.0 HP | 1.50 kW | 220/380 | 3 | 4P | 1450 | 24 | 5,770 |
| SF-QR | 3.0 HP | 2.20 kW | 220/380 | 3 | 4P | 1450 | 28 | 6,750 |
| SF-QR | 5.0 HP | 3.70 kW | 220/380 | 3 | 4P | 1450 | 28 | 9,740 |
| SF-QR | 5.0 HP | 3.70 kW | 380/415 | 3 | 4P | 1450 | 28 | 9,740 |
| SF-QR | 7.5 HP | 5.50 kW | 220/380 | 3 | 4P | 1450 | 38 | 13,500 |
| SF-QR | 7.5 HP | 5.50 kW | 380/415 | 3 | 4P | 1450 | 38 | 13,500 |
| SF-QR | 10 HP | 7.50 kW | 220/380 | 3 | 4P | 1450 | 38 | 16,840 |
| SF-QR | 10 HP | 7.50 kW | 380/415 | 3 | 4P | 1450 | 38 | 16,840 |
| SF-QR Series ชนิดหุ้มมิด : IP.55 Insulation Class F | ||||||||
| SF-QR | 1/4 HP | 0.20 kW | 220/380 | 3 | 4P | 1450 | 11 | 2,980 |
| SF-QR | 1/2 HP | 0.40 kW | 220/380 | 3 | 4P | 1450 | 14 | 3,700 |
| SF-QR | 1.0 HP | 0.75 kW | 220/380 | 3 | 4P | 1450 | 19 | 4,670 |
| SF-QR | 2.0 HP | 1.50 kW | 220/380 | 3 | 4P | 1450 | 24 | 5,990 |
| SF-QR | 3.0 HP | 2.20 kW | 220/380 | 3 | 4P | 1450 | 28 | 6,960 |
| SF-QR | 5.0 HP | 3.70 kW | 220/380 | 3 | 4P | 1450 | 28 | 10,040 |
| SF-QR | 5.0 HP | 3.70 kW | 380/415 | 3 | 4P | 1450 | 28 | 10,040 |
| SF-QR | 7.5 HP | 5.50 kW | 220/380 | 3 | 4P | 1450 | 38 | 13,930 |
| SF-QR | 7.5 HP | 5.50 kW | 380/415 | 3 | 4P | 1450 | 38 | 13,930 |
| SF-QR | 10 HP | 7.50 kW | 220/380 | 3 | 4P | 1450 | 38 | 17,360 |
| SF-QR | 10 HP | 7.50 kW | 380/415 | 3 | 4P | 1450 | 38 | 17,360 |
| SF-J Series ชนิดหุ้มมิด : IP.55 Insulation Class F | ||||||||
| SF-J | 15 HP | 11.0 kW | 220/380 | 3 | 4P | 1450 | 42 | 32,190 |
| SF-J | 15 HP | 11.0 kW | 380/415 | 3 | 4P | 1450 | 42 | 32,190 |
| SF-J | 20 HP | 15.0 kW | 220/380 | 3 | 4P | 1450 | 42 | 40,240 |
| SF-J | 20 HP | 15.0 kW | 380/415 | 3 | 4P | 1450 | 42 | 40,240 |
| SF-J | 25 HP | 18.0 kW | 220/380 | 3 | 4P | 1450 | 48 | 50,040 |
| SF-J | 25 HP | 18.0 kW | 380/415 | 3 | 4P | 1450 | 48 | 50,040 |
| SF-J | 30 HP | 22.0 kW | 220/380 | 3 | 4P | 1450 | 48 | 58,270 |
| SF-J | 30 HP | 22.0 kW | 380/415 | 3 | 4P | 1450 | 48 | 58,270 |
| SF-J | 40 HP | 30.0 kW | 220/380 | 3 | 4P | 1450 | 55 | 73,220 |
| SF-J | 40 HP | 30.0 kW | 380/415 | 3 | 4P | 1450 | 55 | 73,220 |
| SF-J | 50 HP | 37.0 kW | 220/380 | 3 | 4P | 1450 | 60 | 91,470 |
| SF-J | 50 HP | 37.0 kW | 380/415 | 3 | 4P | 1450 | 60 | 91,470 |
| SF-J | 60 HP | 45.0 kW | 220/380 | 3 | 4P | 1450 | 60 | 105,250 |
| SF-J | 60 HP | 45.0 kW | 380/415 | 3 | 4P | 1450 | 60 | 105,250 |
| SF-J | 75 HP | 55.0 kW | 220/380 | 3 | 4P | 1450 | 60 | 117,570 |
| SF-J | 75 HP | 55.0 kW | 380/415 | 3 | 4P | 1450 | 60 | 117,570 |
